Zero Emission Power

SKU: KDD200-72D12-Z-33

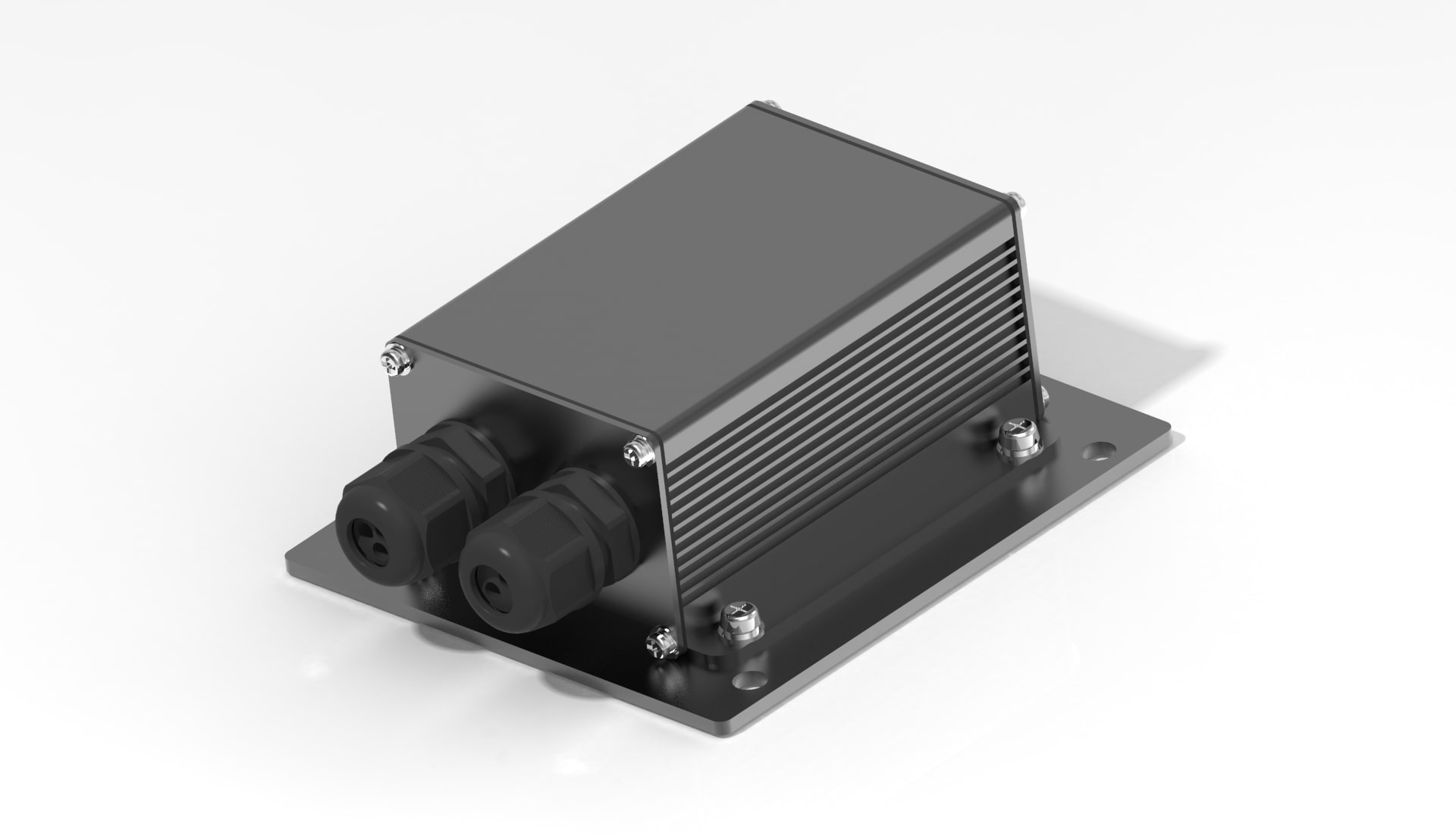

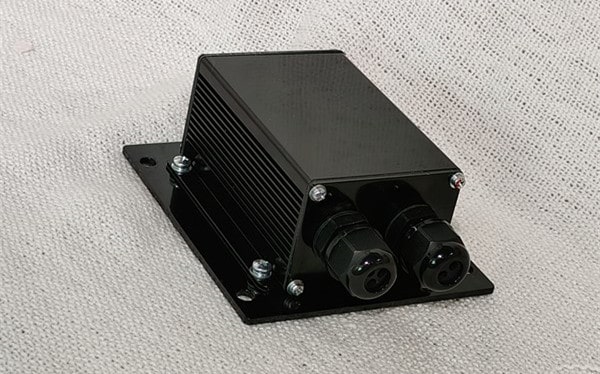

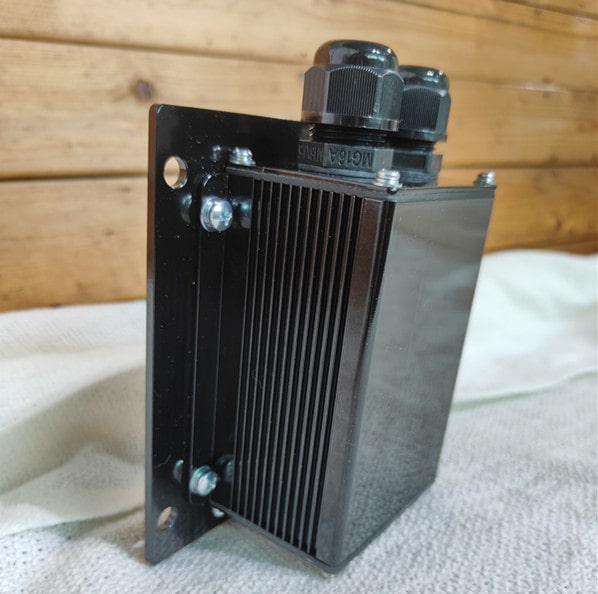

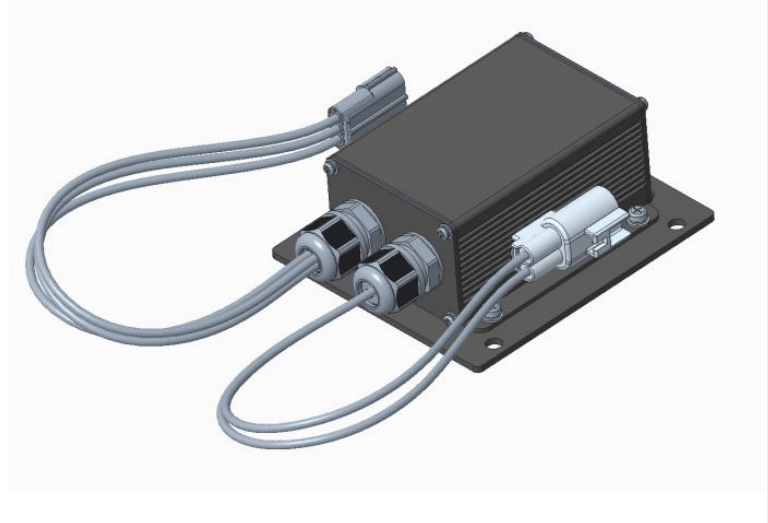

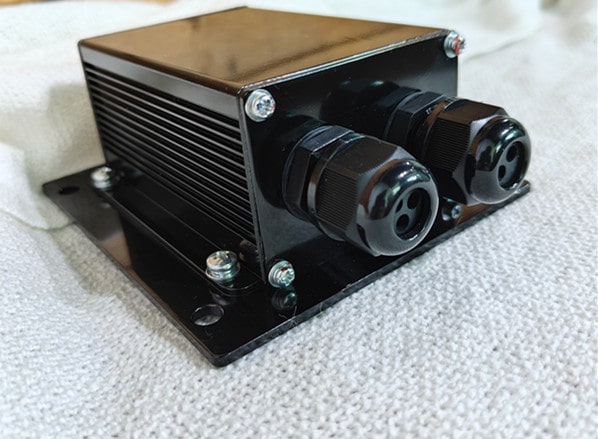

Zemiro DCDC Power Supply for Forklifts

This product is suitable for forklift vehicles. The DCDC power supply converts input of 60-100Vdc to an output of 12Vdc/200W. The product utilizes natural air cooling and has a waterproof rating of IP66. The DCDC power supply features stable output voltage, high conversion efficiency, safety, reliability, and strong vibration resistance capabilities. It also includes protections such as output short circuit, output overvoltage, input undervoltage, output overcurrent, and over-temperature.

Specs:

Input Voltage Range:60—100Vdc
Rated Output Voltage(Vdc):12
Efficiency:91%
Output Current Range(A):0-16.7
Ripple and Noise(mVp-p):200

Features:

Operating temperature: -30℃~+60℃
Relative Humidity:5%-95(no condensation)
Altitude: 0-2000m
Atmospheric Pressure:70~106Kpa
Noise: < 42dB
Cooling Method:natural air cooling
Dimension: 100mm*88mm*53mm
Weight: 0.6KG(Miniaturization of the overall dimensions, lightweight)
MTBF:≥200,000H
Customization available
