Zemiro 2 in 1 Power Module ( integrated 1500W DCDC Converter, PDU)

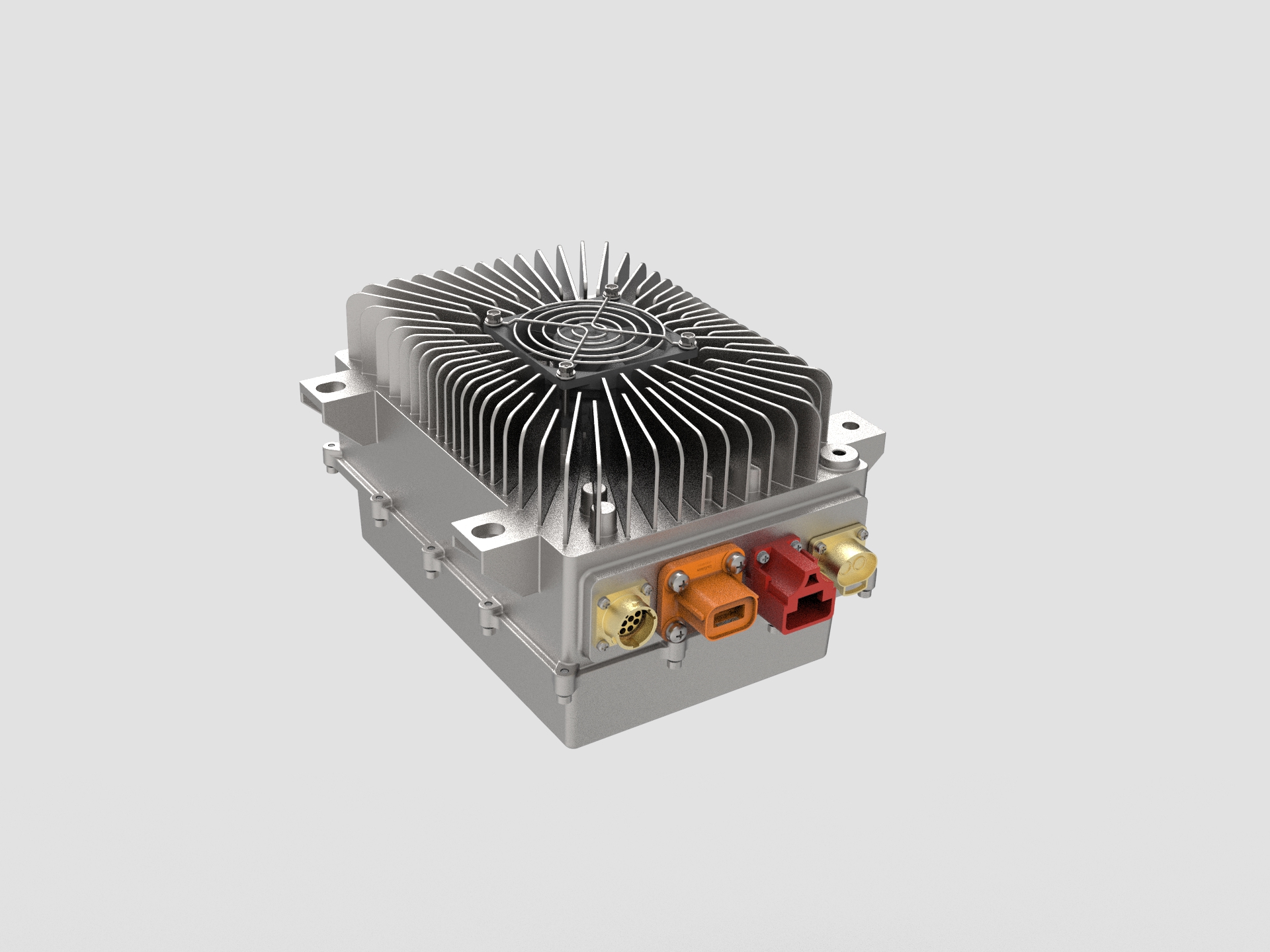

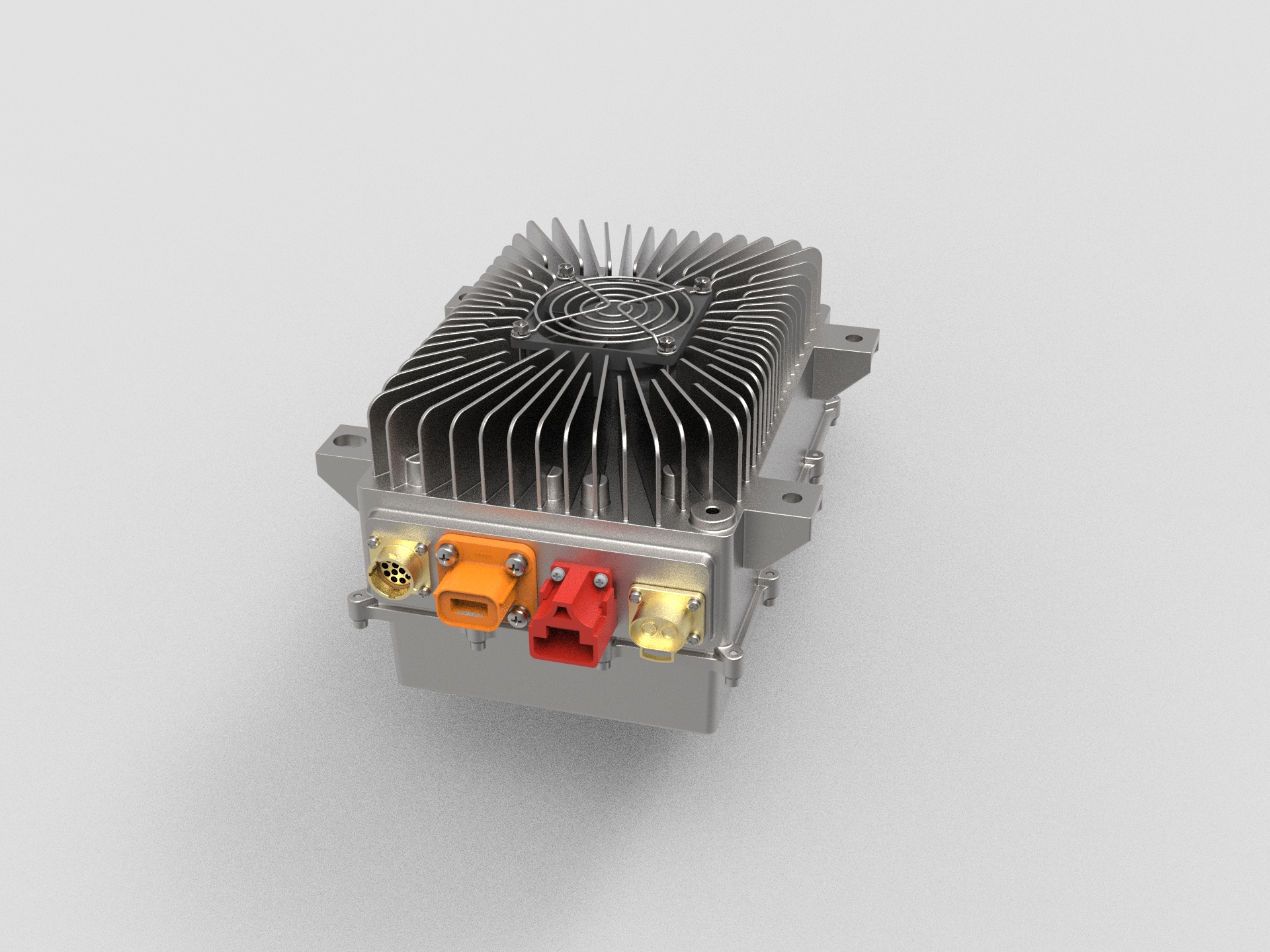

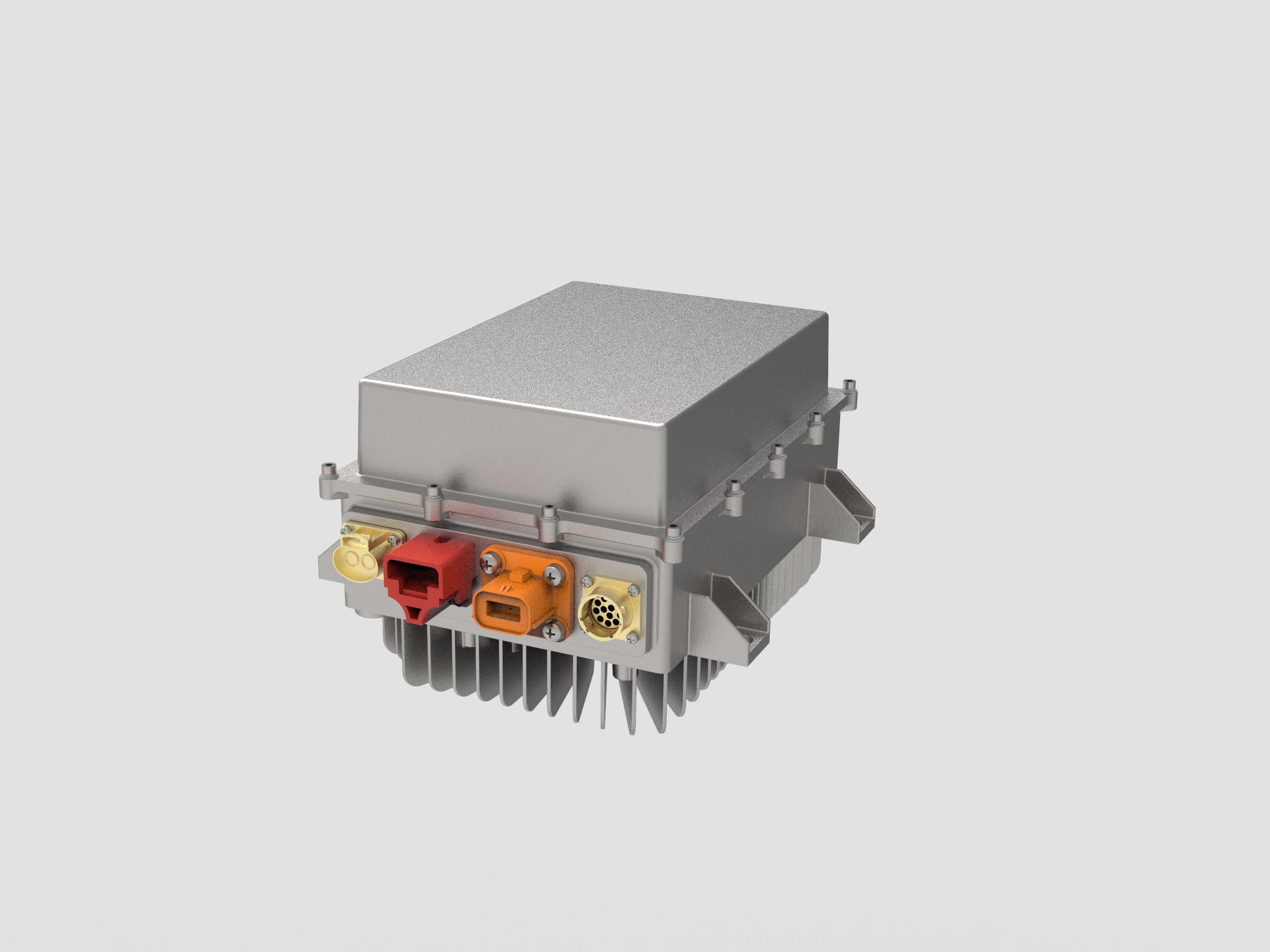

One of the key advantages of our product is its robust construction. Housed in a die-cast aluminum case with IP67 protection, it can withstand harsh environments and extreme conditions.

Another advantage of our product is its advanced monitoring and control capabilities. With a superior monitoring unit and a CAN interface, key internal parameters can be easily set or adjusted as needed, providing greater flexibility and customization options.

Thanks to our state-of-the-art soft switch control technology, our DC/DC converters offer stable output, high conversion efficiency, and exceptional reliability. They are also designed to withstand vibrations and shocks, making them ideal for use in demanding applications.

Specs:

Input Voltage Range: 113~175 V dc

Output Rated Voltage: 14V dc

Output Power: 1500W

PTC Output: 4000W

Operating temperature: -40℃~+80℃
Efficiency: 92%
Dimension: 308mm*235mm*165mm
Weight: <6.5kg

Customization available
